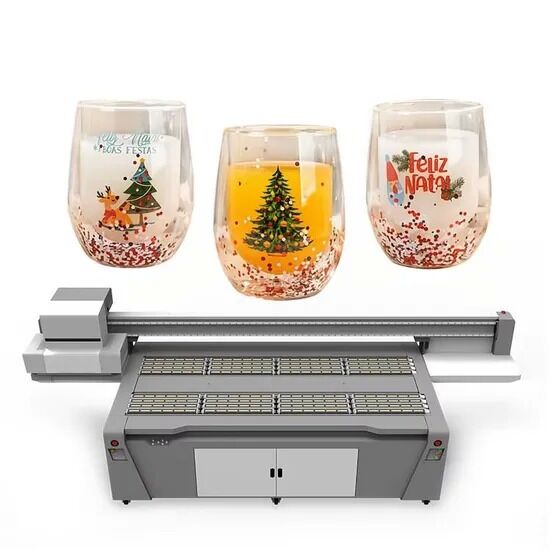

UV Ink Customizable Varnish Technology Cylinder Vacuum Bottle Digital Printer
Product Overview
Advanced digital printing solution featuring UV ink technology with customizable varnish capabilities for cylinder vacuum bottle applications.
Key Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality, suitable for diverse applications
- High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and smooth transitions
- Intelligent Maintenance: Automatic nozzle flushing and moisture retention during non-operational periods prevents blockage from ink curing
Technical Specifications
| Model |
CF-2510 (Duplex) |
| Nozzle Type |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers.
Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services.
With over 10 years of UV printer manufacturing experience, we export to France, Germany, Vietnam, India and other countries. All products carry CE and RoHS certification.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
White ink enables high-quality graphics on various materials by serving as a primer for non-white substrates. Varnish enhances print brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
UV printers handle all flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, and more. This technology eliminates coating requirements and prevents fading and blistering.
Q3: Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training and international service visits for testing and repairs.
Q5: Regarding printer maintenance
Daily ink purging is recommended. For extended non-use periods exceeding 10 days, nozzle cleaning with specialized fluid and moisture retention is essential.
Q6: Are you a factory or a foreign trade company?
We are a manufacturing facility, enabling us to offer competitive pricing and superior service quality.
