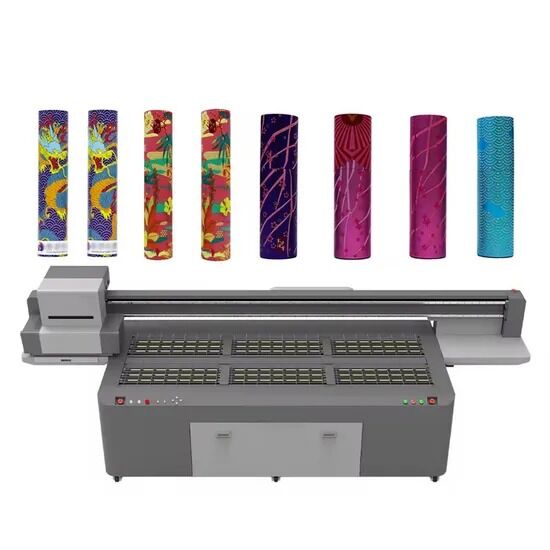

Skydeeprinter Cylinder UV Inkjet Printer for 360 Rotary Printing
Product Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality, suitable for various industrial applications.
- High Resolution: Multiple inkjet schemes available for different printing materials, delivering accurate colors, distinct layers, and uniform transitions.
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working states prevents blockage caused by ink curing.
Technical Specifications - CF-2510 (Duplex)
| Equipment Specifications |
Details |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W+CMYK+ Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Company Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our factory is located in Panyu, Guangzhou, Guangdong Province, covering 2500 m² with over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management. We support OEM and ODM services with over 10 years of UV printer manufacturing experience, receiving positive feedback from clients worldwide. Our products are exported to France, Germany, Vietnam, India, and other countries, with CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
A: If you choose a printer with white ink function, then the media you can print on seems to have no limitations. This is because white ink helps to generate high-quality graphics on hard or soft materials (such as acrylic boards or backlit films), and can also be used as a "primer" for printing on non-white materials. Varnish can make the printed pictures brighter, and at the same time extend the fading period of UV ink.
Q2: What materials can UV flatbed printers print on?
A: All flatbed media, such as PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, etc. UV printing reduces many tasks and troubles such as coating, fading, and blistering, and saves a lot of working hours. Rigid identification boards, hard cardboard or corrugated boxes, special markets (such as custom and decoration markets): glass, tiles, wood, even furniture.
Q3: Which languages does the RIP installation interface support?
A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, Traditional Chinese
Q4: How is the after-sales service?
A: We have many experienced technicians who provide technical support for all customers. We will teach you how to operate the machine until you fully master it. Sometimes our technical team will also go abroad to test and repair the machine.
Q5: Regarding printer maintenance
A: We suggest pressing the ink once a day when the printer is turned on. If you don't use the printer for more than 10 days, please clean the print head with cleaning fluid and keep the nozzle moisturized.
Q6: Are you a factory or a foreign trade company?
A: We are a factory, so we can provide printers at reasonable prices and high-quality services.
